Product Details:
|
| Type: | Drive-In Pallet Rack | Material: | Steel |
|---|---|---|---|
| Feature: | Corrosion Protection | Use: | Warehouse Rack |
| Depth: | 500-1200mm | Weight Capacity: | 1000-4000kg/layer,6000-21000kg/bay |
| Width: | 1000-3600mm | Height: | 3000-14500mm |
| Surface Treatment: | Epoxy Electrostatic Powder Coating | Color: | RAL5017,RAL5005,RAL2004,RAL1004,etc. |
| Products Design Code: | Designed And Manufactured To Comply With AS4084 Code | Company Certificates: | Passed AS4084 In Australian, CE,ISO9001,etc |
| Port: | Nanjing,or Shanghai Port |

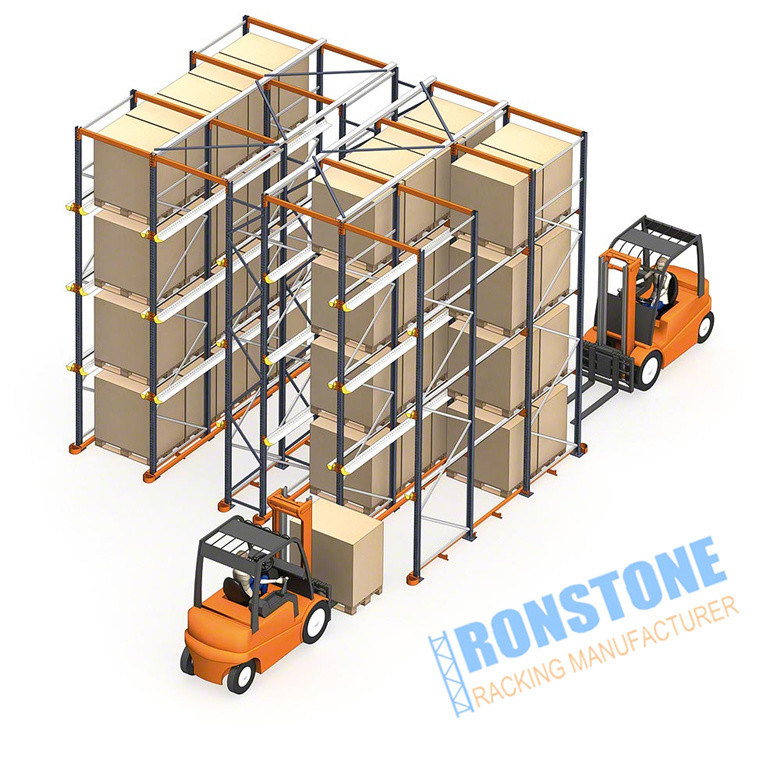

Drive-In racking is used where high-density storage is required. Pallets are stored in a block system with a reduced number of aisles. Fork-lifts drive into the racking between uprights to load or retrieve pallets. The first pallet in is the last one out.High-density storage with minimal aisle space allowing maximum cubic storage space. It is frequently used in facilities with a low number of product lines.
Drive-In Racking offers the ability to store a large amount of similar loads in a smaller area.
Selectivity is sacrificed, but storage density is outstanding. Drive-In Racking can store up to 75% more pallets in the same space than selective racking. It requires fewer aisles and has better cubic storage.
Drive-In Racking is ideal for;
• Bulk Storage.
• Cold storage applications - to store as many pallets in as little expensive freezer space as possible.
• A large amount of similar items that can be stored in a single pallet position and accessed last-in, first-out.
• Seasonal items that move quickly out of your inventory.
• If you don't store a wide variety of loads in the rack.
• Easily damaged or fragile loads, which cannot be block stacked.
In addition to the basic rack structure forming of upright frames, beams and rowspacers, there are some other specil components for the driving-in bay structure.
Pallet support rails: The pallet rails is ideal when all of the pallets to be stored are the same size, as it means that can be centralized which eliminates the merchandise from colliding with the sides of the racking structure . There are two kinds of pallet support rails are available.
Pallet rail lead in: Rail lead in are installed at the end of pallet rails in each of the loading aisles of drive-in racking system. They help to guide the pallet at the entrance to each aisle.
Floor guide rails: Floor guide rails can prevent the pallets colliding with the sides of the racking structure.
Enable the forklifts to be equipped with side wheels so that they are centralized when moving inside the storage aisles.
Upright front protections: They are installed at the front of the first upright of each row of frames and provide the protection against possible minor impacts
Design case
Design Specification for Warehouse Solution of Drive-in Racking System:
1). Dimensions of pallet & goods: Length× Width× Height
2). Total weight of goods (including pallet);
3). Forklift maximum lifting height & net usable height in warehouse;
4). Forklift model & parameters;
5). Direction and requirements for goods moving in and out.
6). Building conditions of storage area in warehouse.
1. Column
2. Box Beam
3. Step Beam
4. Wire deck
1)Flared deck with waterfall
2)Step deck with waterfall
5. Safety accessories
We pay high attention to the package of racks with professional wrapping machine, to ensure security of long distance shipment. Special demand for package is available. The way of packages typically use plastic stretch film, corrugated paper, wooden bars, crates, and metal strips, etc. for bulk materials, Carton boxes and pallets used for accessories. We also make customized packages as customers' requirements.
Ironstone Has gained Professional steel storage rack testing certifications at MONASH university for AS4084-2012 test standard as well as R-Mark certification test at SEIZMIC INC in US.
Meanwhile, some other Documents such as ISO9001, CE, SGS supplier audit report Etc, are all certified at Ironstone.
You can rest assured that you are buying racks and shelves without any quality problem.
R-Marks certifocation
AS4084 Certification
Pre-sale service & after-sale service
1. Project design & optimization support
Ironstone has professional design engineers who are experienced in offering you optimal storage solutions for optimizing your material and information flow. Based on engineering design, computer modeling, and CAD software design, we have successfully provided thousands of storage solutions.
2. Project installation Support
Ironstone provides project installation support, all assembly drawings & Videos would be transferred to our customers for easy installation, If customers' storage systems seem complicated and according to specific request, Ironstone can dispatch installation engineers to instruct assemble and install your rack systems on the site.
Project cases
We have completed projects in foreign market, like US, Mexico, Europe, Thailand, Argentina, south Africa etc. and received highly praise from our clients.
Ironstone Team Group
Ironstone team focuses on providing high quality racking & shelving storage solution and relevant services for our customers, we are confident to provide best products and services.
The Mission of Ironstone group is to be a customer driven, innovative company providing the best products, solutions, and customer service attainable in the industry today with a commitment to on-going improvement.
Questions You May Care About:
Q1:Does all racks produced by your company?
A1: Yes, we're a DIRECT MANUFACTURE with over 20 years experience, main products of us include Pallet Racking, Shelving, Radio Shuttle, Cantilever, Mezzanine, etc. All products are 100% produced by ourselves.
Q2: Where are you company located?
A2: Our factory is located in Jiangning District,Nanjing, Jiangsu, China, close to Nanjing Port, conveniently for delivery. 90,000sqm production plant, which enable a strong production capacity and stable quality.
Q3: What certification do your products passed?
A3: We're ISO9001 certificated company. Rack system are strictly designed and produced based on CE and RMI/AS4084:2012 standard for storage rack, comply with FEM and SEMA standard.
Q4 How long for your warranty period?
A4: We afford 10 year warranty and lifetime insurance services of all racking products. Any quality issues that caused by Accidental impact, we'll provide free parts for replacement.
Q5: Are you able to provide installation service?
A4: We have mature installation team with rich project experience. For some complicated cases, our engineer could come to project site and help clients for installation work. Normally, we can offer solution for your problem through email, mob and video
