Product Details:
|
| Type: | Carton Flow System | Material: | Steel |
|---|---|---|---|
| Feature: | Corrosion Protection | Use: | Industrial Storage |
| Depth: | 1000-4500mm | Weight Capacity: | 300-800kg |
| Width: | 1000-3000mm | Height: | 2500-7500mm |
| Products Surface Treatment: | High Quality Epoxy Electrostatic Powder Coating | Products Design And Production Code: | Safety Standard AS4084 In Australian And FEM10.202. In Europe |
| Products Color: | RAL5017(traffic Blue),RAL2004(orange),RAL7034(light Grey),etc. | Company Certificates: | AS4084 Test In Australian,ISO9001-14001, CE,etc. |
| Port: | Nanjing Port |
Description

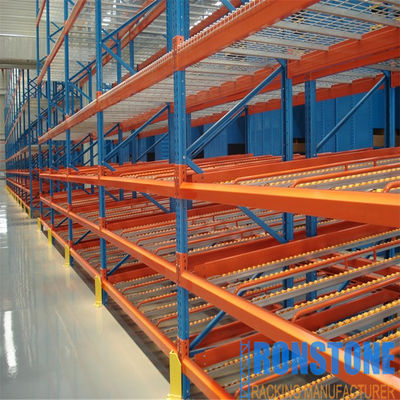

Carton flow rack systems are designed for cartons( not pallets) to be stored and picked in a FIFO(First-In&First-Out) basis. Like pallet flow racks, cartons are also be stored on inclined tracks with rollers or load-bearing wheels. When a carton is removed from the front, the one behind it will immediately slide up to take its place, ensuring automatic stock rotation and increasing picking efficiency. Using gravity to move inventory along, carton flow rack system offers many benefits over static shelving including enhanced workflow, productivity, accuracy and lower initial and operational costs, along with increased employee safety and comfort. In addition, this rack systems are available in various sizes and can accommodate to various products from odd-shaped cases, cartons, bins, etc. Making merchandise remains better organized and easily accessible, this application is particularly suitable for assembly line, order picking and dispatch area and can also be added into existing selective pallet racking systems.
Advantages
a. Space Saving: Carton live storage is a unique storage and order picking system, designed to increase order-picking efficiency whilst saving floor-space.
b. Picking efficiency: Carton live storage uses gravity to maximize the efficiency of full-and split-carton order picking operations.
c. Labor Saving: Taking advantage of gravity, carton flow storage rack requires less material handling leading to less manpower expense.
d. Versatile: Working on a First-in/First-out (FIFO) basis, carton flow storage system is suitable for fast turnover products, homogeneous products with large quantities and can be used in a lot of areas.
e. Adjustable: After years of experience and optimization, steel man carton live storage’s comprises of a flowing frame with rollers and guides which is specially designed to be adjust simply and easily. To assemble and disassemble without any bolts and nuts, you can adjust with the specially connectors to change the flowing frame, you can also adjust the space of the rollers and guides to make it suitable for a variety of goods.
System Configuration
Carton flow Storage rack can also be incorporated both Pallet Racking and Long Span Shelving systems to maximize your loading capacity needs and your picking efficiency. A series of gravity tracks transport suitably packaged products from replenishment aisles to picking faces.
Cartons are loaded onto fixed lanes of inclined gravity rollers which are set at a fixed gradient. When a load is taken from the picking face, the next one rolls into position, with replenishment stock loaded at the opposite (upper) end of the lane. Following a First-in/First-Out pinciple, stock rotation is therefore automatic with minimum fork lift truck travel distance.
More Details and Illustrated Pictures
| Name | Carton Flow Shelf Rack | Material | Steel |
| Shelf levels | 2~12 tiers per shelving unit | Color | Gray, White, Black, Blue, Etc. |
| Height | 1500mm~5000mm | Weight Capacity | 150~800kg per shelf |
| Width | 1000mm~2700mm | Depth | 400mm~1200mm |
| Finish | Epoxy Powder Coated forcorrosion prevention | ||
| Usage | Cargos Storage | ||
| Package | Plastic stretch film, Corrugated paper, Cartons, Wooden bars, Crates, and Metal strips, etc. | ||
| Certification | RMI/AS4084-2012 /CE/ ISO9001 | ||
| Delivery time | 7~25 days according to order quantity | ||
| Assemble & installation | Detailed assembly instructions are available | ||
2. Box Beam
3. Step Beam
4. Wire deck
1)Flared deck with waterfall
2)Step deck with waterfall
5. Safety accessories
Ironstone Has gained Professional steel storage rack testing certifications at MONASH university for AS4084-2012 test standard as well as R-Mark certification test at SEIZMIC INC in US.
Meanwhile, some other Documents such as ISO9001, CE, SGS supplier audit report Etc, are all certified at Ironstone.
You can rest assured that you are buying racks and shelves without any quality problem.
R-Marks certifocation
AS4084 Certification
We pay high attention to the package of racks with professional wrapping machine, to ensure security of long distance shipment. Special demand for package is available. The way of packages typically use plastic stretch film, corrugated paper, wooden bars, crates, and metal strips, etc. for bulk materials, Carton boxes and pallets used for accessories. We also make customized packages as customers' requirements.
Pre-sale service & after-sale service
1. Project design & optimization support
Ironstone has professional design engineers who are experienced in offering you optimal storage solutions for optimizing your material and information flow. Based on engineering design, computer modeling, and CAD software design, we have successfully provided thousands of storage solutions.
2. Project installation Support
Ironstone provides project installation support, all assembly drawings & Videos would be transferred to our customers for easy installation, If customers' storage systems seem complicated and according to specific request, Ironstone can dispatch installation engineers to instruct assemble and install your rack systems on the site.
Project cases
We have completed projects in foreign market, like US, Mexico, Europe, Thailand, Argentina, south Africa etc. and received highly praise from our clients.
Ironstone Team Group
Ironstone team focuses on providing high quality racking & shelving storage solution and relevant services for our customers, we are confident to provide best products and services.
The Mission of Ironstone group is to be a customer driven, innovative company providing the best products, solutions, and customer service attainable in the industry today with a commitment to on-going improvement.
Questions You May Care About:
Q1:Does all racks produced by your company?
A1: Yes, we're a DIRECT MANUFACTURE with over 20 years experience, main products of us include Pallet Racking, Shelving, Radio Shuttle, Cantilever, Mezzanine, etc. All products are 100% produced by ourselves.
Q2: Where are you company located?
A2: Our factory is located in Jiangning District,Nanjing, Jiangsu, China, close to Nanjing Port, conveniently for delivery. 90,000sqm production plant, which enable a strong production capacity and stable quality.
Q3: What certification do your products passed?
A3: We're ISO9001 certificated company. Rack system are strictly designed and produced based on CE and RMI/AS4084:2012 standard for storage rack, comply with FEM and SEMA standard.
Q4 How long for your warranty period?
A4: We afford 10 year warranty and lifetime insurance services of all racking products. Any quality issues that caused by Accidental impact, we'll provide free parts for replacement.
Q5: Are you able to provide installation service?
A4: We have mature installation team with rich project experience. For some complicated cases, our engineer could come to project site and help clients for installation work. Normally, we can offer solution for your problem through email, mob and video
