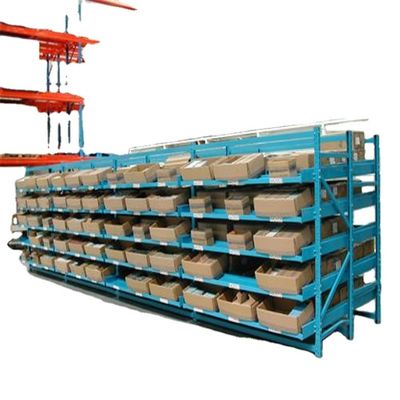

Large Image :  Ironstone Warehouse Carton storage flow racks for perishable products

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: ISO9001,ISO14001,CE,AS4084,etc.
Model Number: Medium duty
Payment & Shipping Terms:
Minimum Order Quantity: 20 Units
Price: $45.00 - $75.00/Units
Packaging Details: Packed with transparent plastic stretch film and corrugated paper, etc
Supply Ability: 600 Unit/Units per Week

Ironstone Warehouse Carton storage flow racks for perishable products

Description
Type: Carton Flow System Material: Steel
Feature: Corrosion Protection Use: Industrial Storage
Depth: 1000-4500mm Weight Capacity: 300-800kg
Width: 1000-3000mm Height: 2500-7500mm
Products Surface Treatment: High Quality Epoxy Electrostatic Powder Coating Products Design And Production Code: Safety Standard AS4084 In Australian And FEM10.202. In Europe
Products Color: RAL5017(traffic Blue),RAL2004(orange),RAL7034(light Grey),etc. Company Certificates: AS4084 Test In Australian,ISO9001-14001, CE,etc.
Port: Nanjing Port



Product Description
Carton flow rack is made up of slightly inclined platforms of wheels and roller, which guarantee an optimal entry and exit of goods. The goods are fed in and slide down by the force of gravity to the other end which leads to the exit aisle. The goods slide down roller lanes, which guarantee perfect product turnover, prevent interference in the replenishment of stock, and increase the speed of order preparation. It is designed for areas in the warehouse with a large volume of picking as they increase the number of lines to prepare and remove the need for personnel to make unnecessary journeys when doing these operations.

 Ironstone Warehouse Carton storage flow racks for perishable products 0

 Adantages

  • FIFO System (first carton in, first carton out).
  • Higher number of SKUs at the front of the racking.
  • Reduction in the time needed for order preparation.
  • Higher product capacity in the facility.



System Configuration



Cartons are loaded onto fixed lanes of inclined gravity rollers which are set at a fixed gradient. When a first carton is taken from the picking face, the next one rolls into position, with replenishment stock loaded at the opposite (upper) end of the lane. Following a First-in/First-Out principle, stock rotation is therefore automatic with minimum forklift truck travel distance.

Ironstone Warehouse Carton storage flow racks for perishable products 2

Structures of Carton flow system



 Ironstone Warehouse Carton storage flow racks for perishable products 4



More details and illustrated pictures





 Ironstone Warehouse Carton storage flow racks for perishable products 6

Name Carton Flow Shelf Rack Material Steel
Shelf levels 2~12 tiers per shelving unit Color Gray, White, Black, Blue, Etc.
Height 1500mm~5000mm Weight Capacity 150~800kg per shelf
Width 1000mm~2700mm Depth 400mm~1200mm
Finish Epoxy Powder Coated forcorrosion prevention
Usage Cargos Storage
Package Plastic stretch film, corrugated paper, Cartons, Wooden bars, Crates, and Metal strips, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days according to order quantity
Assemble & installation Detailed assembly instructions are available



As a high-density storage system with convenient material handling process, pallet flow racking systems are widely used in a lot of areas such as freezer applications, food productions and some large distribution centers.

Main Components

1.  Column

Ironstone Warehouse Carton storage flow racks for perishable products 8

2. Box Beam

Ironstone Warehouse Carton storage flow racks for perishable products 10



3. Step BeamIronstone Warehouse Carton storage flow racks for perishable products 12



4. Wire deck

a. Flared deck with waterfall

Ironstone Warehouse Carton storage flow racks for perishable products 14



 b. Step deck with waterfall

Ironstone Warehouse Carton storage flow racks for perishable products 16



5. Safety accessories

Ironstone Warehouse Carton storage flow racks for perishable products 18



Certifications

Ironstone Has gained Professional steel storage rack testing certifications at MONASH university for AS4084-2012 test standard as well as R-Mark certification test at SEIZMIC INC in US.
Meanwhile, some other Documents such as ISO9001, CE, SGS supplier audit report Etc, are all certified at Ironstone.
You can rest assured that you are buying racks and shelves without any quality problem.



R-Marks certifocation



Ironstone Warehouse Carton storage flow racks for perishable products 20



 AS4084 Certification



 Ironstone Warehouse Carton storage flow racks for perishable products 22



Packaging & Shipping

We pay high attention to the package of racks with professional wrapping machine, to ensure security of long distance shipment. Special demand for package is available. The way of packages typically use plastic stretch film, corrugated paper, wooden bars, crates, and metal strips, etc. for bulk materials, Carton boxes and pallets used for accessories. We also make customized packages as customers' requirements.



Ironstone Warehouse Carton storage flow racks for perishable products 24



Our Services

 Pre-sale service & after-sale service


1. Project design & optimization support
Ironstone has professional design engineers who are experienced in offering you optimal storage solutions for optimizing your material and information flow. Based on engineering design, computer modeling, and CAD software design, we have successfully provided thousands of storage solutions.

Ironstone Warehouse Carton storage flow racks for perishable products 26





2. Project installation Support
Ironstone provides project installation support, all assembly drawings & Videos would be transferred to our customers for easy installation, If customers' storage systems seem complicated and according to specific request, Ironstone can dispatch installation engineers to instruct assemble and install your rack systems on the site.

Ironstone Warehouse Carton storage flow racks for perishable products 28

Company Profile

Ironstone Warehouse Carton storage flow racks for perishable products 30

  • Ironstone storage engineering founded in 1999, with 20 years experience in Storage equipments industry, is a leading Storage systems MANUFACTURE & DESIGNER for warehouse storage solution.
  • We're specialized in design and production of Pallet Racking, Storage Shelving, Cantilever Rack, Mezzanine systems, Radio Shuttle Systems, ASRS, etc.
  • Ironstone provides ONE-STOP warehouse storage solution, including Design, Consultant, Manufacture, Installation, Technical Guidance and Maintenance.
  • Ironstone is well known for superior quality and excellent service. Our products have got certification of ISO9001, CE, AS4084:2012, R-Mark and comply with FEM, SEMA standard.
  • Over 20 years In Europe, Middle East, Southeast Asia, American market, We're proud to say that Ironstone is always providing first-class Storage systems and service to all customer.
  • Welcome your visit to our factory in China! Hope we'll have a chance to work with you.



Project cases
We have completed projects in foreign market, like US, Mexico, Europe, Thailand, Argentina, south Africa etc. and received highly praise from our clients.



Ironstone Warehouse Carton storage flow racks for perishable products 32



Ironstone Team Group
Ironstone team focuses on providing high quality racking & shelving storage solution and relevant services for our customers, we are confident to provide best products and services.
The Mission of Ironstone group is to be a customer driven, innovative company providing the best products, solutions, and customer service attainable in the industry today with a commitment to on-going improvement.



Ironstone Warehouse Carton storage flow racks for perishable products 34





FAQ

Questions You May Care About:


Q1:Does all racks produced by your company?
A1: Yes! We're a DIRECT MANUFACTURE enjoying over 20 years experience, main products of us include Pallet Racking, Shelving, Radio Shuttle, Cantilever, Mezzanine, etc. All products are 100% produced by ourselves with strict quality control.

Q2: Where is your company located?
A2: Our factory is located in Jiangning District, Nanjing, Jiangsu Province, China, close to Nanjing Port, convenient for delivery and shipping. About 90,000 sqm production plant  enables a strong production capacity and stable product quality.





Q3: What certification do your products passed?
A3: We're ISO9001 certificated company. Rack systems are strictly designed and produced based on CE and RMI/AS4084:2012 standard for storage rac, comply with FEM and SEMA standard.


Q4: How long for your warranty period?
A4: We afford 10 years warranty and lifetime insurance services of all racking products. For any quality issues that caused by accidental impact, we'll provide free parts for replacement.

Q5: Are you able to provide installation service?
A4: Yes! We have mature installation team with rich project experience. For some complicated cases, our engineer could come to project site and help clients for installation work if necessary. Normally, we can offer solutions to your problems through email, mobile and video.
