|Type:||Selective Pallet Rack||Material:||Steel|
|Feature:||Suitable For Outdoors||Use:||Industrial|
|Color:||RAL5017/traffic Blue,RAL2004/pure Orange,RAL1004/yellow,etc.||Surface Treatment:||Epoxy Electrostatic Powder Coating|
|Company Certificate:||Comply With AS4084-2012 (Australian Code For Steel Storage Racking)||Others:||ISO9001,CE, Etc.|
|Port:||Nanjing Or Shanghai Port|

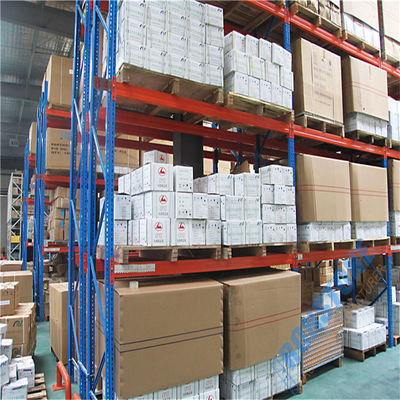

Selective Pallet Racking Systems are designed to maximize storage and accessibility. With selective racks, any pallet in any position is readily available. Selective Pallet Racks are popular and reliable racking systems that improve pallet shelf organization, as well as efficiency and safety, by removing cluttered pallets on a warehouse floor into an organized pallet rack for easy access.
1. P75 pallet racking is designed to store pallet cargos, it enable you to make full use of the storage space.
2. With a wide range of optional solutions and components available, we can design special P75 pallet racking according to your requirements.
3. P75 pallet racking can be coupled with different specification of pallets and containers.
4. It can coordinate with all the handling equipment and operational equipment.
5. P75 pallet racking is manufacture in accordance with international quality standard ISO 9001:2000, as well as international design standard SEMA, FEM, and AS4084.
|Shelf levels||2~15 tiers per shelving unit||Color||(RAL Code) Green, Orange, Blue, Yellow, Etc.|
|Upright Frame Height||2500mm~15000mm||Weight Capacity||500~3000kg per level|
|Finish||Epoxy Powder Coated for corrosion prevention|
|Package||Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.|
|Accessories||Bolts and nuts, Upright protectors, decks, etc.|
|Certification||RMI/AS4084-2012 /CE/ ISO9001|
|Delivery time||7~25 days as per order quantity|
|Assemble & installation||Detailed assembly instructions are available|
1. Beam connector of P75 pallet racking
P75 pallet racking beam connector is designed to increase resistance to sideways away moments and effectively take vertical loads and moments on specially designed high performance hooks.
2. Safety Pin & safety lock
Each beam end is supplied steel safety lock or safety pin, which guarantee the beam is correctly positioned and help prevent the beam being accidentally dislodged during it work. Safety locks are fixed to beam connectors when being packaged.
3. Common used Beams
We have five types beam section to ensure the specific need: Square Pipe, C-pipe, Stepped pipe, Box Pipe, nosed box pipe.
4. Closed Box Beam
Our P75 Closed Box beams are available in a comprehensive range to cover most loading requirements. Beam section height available from 80-160mm.
5. Base plate
Baseplate used for P75 pallet racking are mainly galvanized which have a good function of anti-corrosion, and according to different situations or customers’ requirements it could be available in different type.
Ironstone Has gained Professional steel storage rack testing certifications at MONASH university for AS4084-2012 test standard as well as R-Mark certification test at SEIZMIC INC in US.
Meanwhile, some other Documents such as ISO9001, CE, SGS supplier audit report Etc, are all certified at Ironstone.
You can rest assured that you are buying racks and shelves without any quality problem.
We pay high attention to the package of racks with professional wrapping machine, to ensure security of long distance shipment. Special demand for package is available. The way of packages typically use plastic stretch film, corrugated paper, wooden bars, crates, and metal strips, etc. for bulk materials, Carton boxes and pallets used for accessories. We also make customized packages as customers' requirements.
Pre-sale service & after-sale service
1. Project design & optimization support
Ironstone has professional design engineers who are experienced in offering you optimal storage solutions for optimizing your material and information flow. Based on engineering design, computer modeling, and CAD software design, we have successfully provided thousands of storage solutions.
2. Project installation Support
Ironstone provides project installation support, all assembly drawings & Videos would be transferred to our customers for easy installation, If customers' storage systems seem complicated and according to specific request, Ironstone can dispatch installation engineers to instruct assemble and install your rack systems on the site.
We have completed projects in foreign market, like US, Mexico, Europe, Thailand, Argentina, south Africa etc. and received highly praise from our clients.
Ironstone Team Group
Ironstone team focuses on providing high quality racking & shelving storage solution and relevant services for our customers, we are confident to provide best products and services.
The Mission of Ironstone group is to be a customer driven, innovative company providing the best products, solutions, and customer service attainable in the industry today with a commitment to on-going improvement.
Questions You May Care About:
Q1:Does all racks produced by your company?
A1: Yes! We're a DIRECT MANUFACTURE enjoying over 20 years experience, main products of us include Pallet Racking, Shelving, Radio Shuttle, Cantilever, Mezzanine, etc. All products are 100% produced by ourselves with strict quality control.
Q2: Where is your company located?
A2: Our factory is located in Jiangning District, Nanjing, Jiangsu Province, China, close to Nanjing Port, convenient for delivery and shipping. About 90,000 sqm production plant enables a strong production capacity and stable product quality.
Q3: What certification do your products passed?
A3: We're ISO9001 certificated company. Rack systems are strictly designed and produced based on CE and RMI/AS4084:2012 standard for storage rac, comply with FEM and SEMA standard.
Q4: How long for your warranty period?
A4: We afford 10 years warranty and lifetime insurance services of all racking products. For any quality issues that caused by accidental impact, we'll provide free parts for replacement.
Q5: Are you able to provide installation service?
A4: Yes! We have mature installation team with rich project experience. For some complicated cases, our engineer could come to project site and help clients for installation work if necessary. Normally, we can offer solutions to your problems through email, mobile and video.
