Home ProductsDrive In Pallet Racking

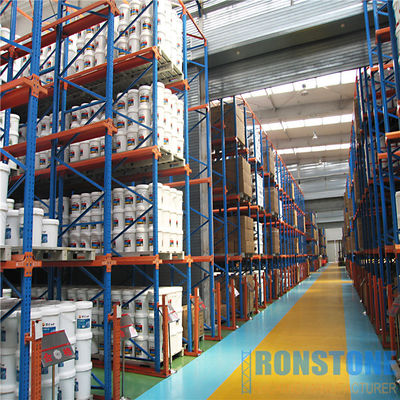

High Storage Density Drive In Pallet Racking Steel

I'm Online Chat Now

High Storage Density Drive In Pallet Racking Steel

High Storage Density Drive In Pallet Racking Steel
High Storage Density Drive In Pallet Racking Steel High Storage Density Drive In Pallet Racking Steel High Storage Density Drive In Pallet Racking Steel High Storage Density Drive In Pallet Racking Steel High Storage Density Drive In Pallet Racking Steel

Large Image :  High Storage Density Drive In Pallet Racking Steel

Product Details:
Place of Origin: Jiangsu, China
Brand Name: ironstone
Certification: CE,ISO9001,AS4084
Model Number: heavy duty
Payment & Shipping Terms:
Minimum Order Quantity: 10 Units
Price: $20.00 - $65.00/Units
Packaging Details: Packed with stretch plastic film and corrugated paper
Supply Ability: 500 Ton/Tons per Week

High Storage Density Drive In Pallet Racking Steel

Description
Type: Drive-In Pallet Rack Material: Steel
Feature: Corrosion Protection Use: Warehouse Rack
Depth: 500-1200 Weight Capacity: 1000-4000kg/layer,6000-21000kg/bay
Width: 1000-3600mm Height: 3000-14500mm
Surface Treatment: Epoxy Powder Electrostatic Coating Product Color: RAL5017,RAL5005,RAL2004,RAL1004,etc.
Products Design Code: Designed And Manufactured To Comply With AS4084 Code Company Certificates: Passed AS4084 Test CE,ISO9001,etc
Port: Nanjing Or Shanghai Port



Product Overview

Description



Drive-in racking is a high-density pallet storage system where the outer sides of the pallet are supported on rails. The rails create a lane and the length of the rails determine how many pallets deep the system will be (typically 2 - 10 pallets). The forklift aisle runs perpendicular to the drive-in lanes and a single aisle can service many lanes on either side, providing a very high pallet position-to-aisle ratio. The operator drives into the required lane to store and retrieve pallets.



Features and Advantages of Drive-in Pallet Rack

  • LIFO (last in, first out) or FIFO (first in, first out) load methods
  • Deep lane storage reduces space usage, cuts costs and holds more loads
  • High volumes, few SKUs
  • Multiple access aisles eliminated
  • Extra control over inputs and outputs
  • More storage density instead of the direct access of Pallet Racks
  • Specifically designed for your pallets and forklifts

 High Storage Density Drive In Pallet Racking Steel 0



Name Warehouse rack Material Steel
Shelf levels 2~15 tiers per shelving unit Color (RAL Code) Green, Orange, Blue, Yellow, Etc.
Upright Frame Height 2500mm~15000mm Weight Capacity 500~3000kg per level
Beam Width 1000mm~3900mm Depth 700mm~1500mm
Finish Epoxy Powder Coated for corrosion prevention
Usage Cargos Storage
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Accessories Bolts and nuts, Upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assembly & installation Detailed assembly instructions are available







Structures of Drive-in pallet rack





High Storage Density Drive In Pallet Racking Steel 2







More details about Drive-in pallet rack





High Storage Density Drive In Pallet Racking Steel 4





Design drawing of Drive-in pallet rack



High Storage Density Drive In Pallet Racking Steel 6



Main Components

1.  Column

High Storage Density Drive In Pallet Racking Steel 8

2. Box Beam

High Storage Density Drive In Pallet Racking Steel 10





3. Step BeamHigh Storage Density Drive In Pallet Racking Steel 12





4. Wire deck



1)Flared deck with waterfall

High Storage Density Drive In Pallet Racking Steel 14





2)Step deck with waterfall

High Storage Density Drive In Pallet Racking Steel 16





5. Safety accessories



High Storage Density Drive In Pallet Racking Steel 18



Packaging & Shipping



We pay high attention to the package of racks with professional wrapping machine, to ensure security of long distance shipment. Special demand for package is available. The way of packages typically use plastic stretch film, corrugated paper, wooden bars, crates, and metal strips, etc. for bulk materials, Carton boxes and pallets used for accessories. We also make customized packages as customers' requirements.



High Storage Density Drive In Pallet Racking Steel 20



Our Services

 Pre-sale service & after-sale service


1. Project design & optimization support
Ironstone has professional design engineers who are experienced in offering you optimal storage solutions for optimizing your material and information flow. Based on engineering design, computer modeling, and CAD software design, we have successfully provided thousands of storage solutions.

High Storage Density Drive In Pallet Racking Steel 22





2. Project installation Support


Ironstone provides project installation support, all assembly drawings & Videos would be transferred to our customers for easy installation, If customers' storage systems seem complicated and according to specific request, Ironstone can dispatch installation engineers to instruct assemble and install your rack systems on the site.

High Storage Density Drive In Pallet Racking Steel 24



Certifications

Ironstone Has gained Professional steel storage rack testing certifications at MONASH university for AS4084-2012 test standard as well as R-Mark certification test at SEIZMIC INC in US.
Meanwhile, some other Documents such as ISO9001, CE, SGS supplier audit report Etc, are all certified at Ironstone.
You can rest assured that you are buying racks and shelves without any quality problem.



R-Marks certifocation



High Storage Density Drive In Pallet Racking Steel 26



 AS4084 Certification



 High Storage Density Drive In Pallet Racking Steel 28





Company Profile

High Storage Density Drive In Pallet Racking Steel 30

  • Ironstone storage engineering founded in 1999, with 20 years experience in Storage equipments industry, is a leading Storage systems MANUFACTURE & DESIGNER for warehouse storage solution.
  • We're specialized in design and production of Pallet Racking, Storage Shelving, Cantilever Rack, Mezzanine systems, Radio Shuttle Systems, ASRS, etc.
  • Ironstone provides ONE-STOP warehouse storage solution, including Design, Consultant, Manufacture, Installation, Technical Guidance and Maintenance.
  • Ironstone is well known for superior quality and excellent service. Our products have got certification of ISO9001, CE, AS4084:2012, R-Mark and comply with FEM, SEMA standard.
  • Over 20 years In Europe, Middle East, Southeast Asia, American market, We're proud to say that Ironstone is always providing first-class Storage systems and service to all customer.
  • Welcome your visit to our factory in China! Hope we'll have a chance to work with you.

Project cases


We have completed projects in foreign market, like US, Mexico, Europe, Thailand, Argentina, south Africa etc. and received highly praise from our clients.



High Storage Density Drive In Pallet Racking Steel 32



Ironstone Team Group


Ironstone team focuses on providing high quality racking & shelving storage solution and relevant services for our customers, we are confident to provide best products and services.The Mission of Ironstone group is to be a customer driven, innovative company providing the best products, solutions, and customer service attainable in the industry today with a commitment to on-going improvement.



High Storage Density Drive In Pallet Racking Steel 34



FAQ

Questions You May Care About:


Q1:Does all racks produced by your company?
A1: Yes, we're a DIRECT MANUFACTURE with over 20 years experience, main products of us include Pallet Racking, Shelving, Radio Shuttle, Cantilever, Mezzanine, etc. All products are 100% produced by ourselves.

Q2: Where are you company located?
A2: Our factory is located in Jiangning District,Nanjing, Jiangsu, China, close to Nanjing Port, conveniently for delivery. 90,000sqm production plant, which enable a strong production capacity and stable quality.

Q3: What certification do your products passed?
A3: We're ISO9001 certificated company. Rack system are strictly designed and produced based on CE and RMI/AS4084:2012 standard for storage rack, comply with FEM and SEMA standard.

Q4 How long for your warranty period?
A4: We afford 10 year warranty and lifetime insurance services of all racking products. Any quality issues that caused by Accidental impact, we'll provide free parts for replacement.

Q5: Are you able to provide installation service?
A4: We have mature installation team with rich project experience. For some complicated cases, our engineer could come to project site and help clients for installation work. Normally, we can offer solution for your problem through email, mob and video

Should any issue you are concern about, feel free to contact with me before and after sales.
