|Type:||Carton Flow System||Material:||Steel|
|Feature:||Corrosion Protection||Use:||Industrial Storage|
|Products Surface Treatment:||High Quality Epoxy Electrostatic Powder Coating||Products Design And Production Code:||Safety Standard AS4084 In Australian And FEM10.202. In Europe|
|Products Color:||RAL5017(traffic Blue),RAL2004(orange),RAL7034(light Grey),etc.||Company Certificates:||AS4084 Test In Australian,ISO9001-14001,etc.|

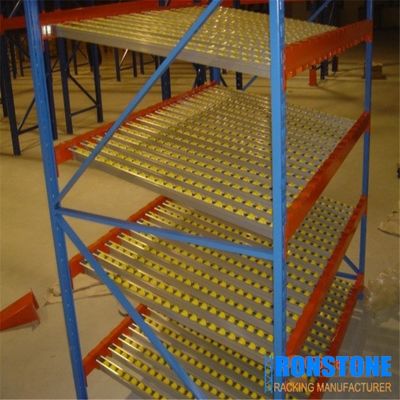

Gravity flow rack is a kind of live storgae solution with high-density capacity and low-energy consumption by taking advantages of gravity. Using sloped rails equipped with steel rollers, products packed in pallets or cartons can slide down to the bay front of the gravity flow rack automatically. Having two seperate sides for products loading and unloading, gravity flow rack follows a First-in/First-out (FIFO) stock rotation principle which is suitable for storing products with short quality guarantee period. In order to get the goods move freely and safely, the racking should be equipped with brake if the slope is long. In addition, separators and buffers installed at the lower end of the slop are also necessary for safe and efficient handling by forklifts or workers.
1. Gravity flow storage system makes full use of the ground space and offers denser storage capacity having only two aisles for loading and unloading.
2. Gravity flow racking system provides improved through put and pick productivity since products can automatically move forward requiring less material handling time.
3. Gravity flow system offers a safer working environment for employees by decreasing the use of forklifts. At the same time, products damage is greatly reduced by controlling the rolling speed.
4. Gravity flow rack system works on a First-in/First-out (FIFO) basis which is suitable for fast turnover products and homogeneous products with large quantities.
5. Gravity flow racking can be compatible with various handling equipment and facilities using adjustable components and accessories which is simple to assemble and install.
6. Gravity flow storage systems are cost-effctive by cutting down the expense on space, manpower and utilities.
|Shelf levels||2~15 tiers per shelving unit||Color||(RAL Code) Green, Orange, Blue, Yellow, Etc.|
|Upright Frame Height||2500mm~15000mm||Weight Capacity||500~3000kg per level|
|Finish||Epoxy Powder Coated for corrosion prevention|
|Package||Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.|
|Accessories||Bolts and nuts, Upright protectors, decks, etc.|
|Certification||RMI/AS4084-2012 /CE/ ISO9001|
|Delivery time||7~25 days as per order quantity|
|Assemble & installation||Detailed assembly instructions are available|
1. Working on a First-in/First-out basis, this live racking provides extremely high levels of storage density in a given area eliminating redundant aisles.
2. Products are placed onto fixed lanes of inclined gravity rollers which are set at a fixed gradient. Taken pallet flow system as an example, when the first pallet is taken from the picking face, the next pallet will roll into the right position fed by gravity, while replenishment stock will be loaded at the upper end of the lane at the same time. In that way, stock rotation has realized automatic with minimum forklifts travel distance.
More Details and Illustrated Pictures
2. Box Beam
3. Step Beam
4. Wire deck
1)Flared deck with waterfall
2)Step deck with waterfall
5. Safety accessories
Ironstone Has gained Professional steel storage rack testing certifications at MONASH university for AS4084-2012 test standard as well as R-Mark certification test at SEIZMIC INC in US.
Meanwhile, some other Documents such as ISO9001, CE, SGS supplier audit report Etc, are all certified at Ironstone.
You can rest assured that you are buying racks and shelves without any quality problem.
We pay high attention to the package of racks with professional wrapping machine, to ensure security of long distance shipment. Special demand for package is available. The way of packages typically use plastic stretch film, corrugated paper, wooden bars, crates, and metal strips, etc. for bulk materials, Carton boxes and pallets used for accessories. We also make customized packages as customers' requirements.
Pre-sale service & after-sale service
1. Project design & optimization support
Ironstone has professional design engineers who are experienced in offering you optimal storage solutions for optimizing your material and information flow. Based on engineering design, computer modeling, and CAD software design, we have successfully provided thousands of storage solutions.
2. Project installation Support
Ironstone provides project installation support, all assembly drawings & Videos would be transferred to our customers for easy installation, If customers' storage systems seem complicated and according to specific request, Ironstone can dispatch installation engineers to instruct assemble and install your rack systems on the site.
